HACH, KTO: HQ40D

Prod #HQ40D53000000

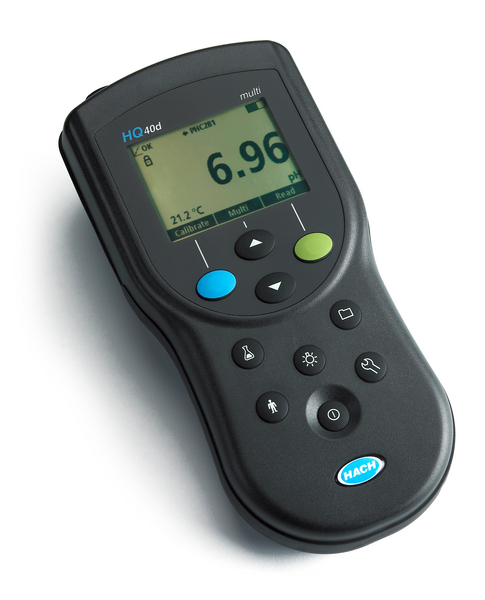

HQ40D merupakan portable meter yang memiliki 2 channel input. HQd ™ meter terhubung dengan IntelliCAL ™ probe yang secara otomatis mengenali parameter pengujian, data kalibrasi, dan pengaturan metode untuk meminimalkan kesalahan serta waktu setup. Dapat dihubungkan langsung dengan 2 probe apa saja sehingga dapat sekaligus mengukur dua paramater yang anda inginkan dan sekaligus menghemat waktu anda. Probe yang dapat dihubungkan dengan HQ40D adalah pH, Conductivity, Optical Dissolved Oxygen (DO), BOD, ORP, Ammonia, Ammonium, Fluoride, Chloride, Sodium, and temperatur. Tahan air, mudah digunakan dan dapat dipakai dilaboratorium atau dilapangan.

Product Overview

SPESIFIKASI :

Automatic Buffer Recognition            : Color-coded: 4.01, 7.00, 10.01 pH;
                                                                   IUPAC: 1.679, 4.005, 7.000, 10.012, 12.45
                                                                   DIN: 1.09, 4.65, 9.23
                                                                   User-defined custom buffer sets

Barometric Pressure Measurement   : For automatic compensation of DO

Battery Requirements                           : 4, AA

BOD5/CBOD resolution                        : Available when used with Hach WIMS BOD Manager software

Cable resistance correction                : Digital - not needed

Calibration Curves Display                  : Calibration summary data

Calibration Intervals/Alerts                 : 2 hours to 7 days
/Reminder

Compliance Certifications                   : CE.WEEE

Conductivity Accuracy                         : ± 0.5 % from (1µS/cm - 200 mS/cm)

Conductivity measurement                 : 5 different stability modes

Conductivity Measurement Range    : 0.01 µS/cm to 200.0 mS/cm

Conductivity resolution                       : 5 digits with 2 digits after decimal point

Custom Calibration Standards           : User-defined standard sets

Data Export                                            : Download via USB connection to PC or flash stick.
                                                                   Automatically transfer entire data log or as readings are taken.

Data Memory                                         : 500 results

Data Storage                                          : GLP ISO compliant reading data stored with calibration details. Calibration
                                                                  details and check standard readings documented as events in data log.
                                                                  Automatically store in "press to read" mode and inerval measurement
                                                                  mode. Manually store in "continuous read" mode.

Digital (intelligent) electrode inputs  : 2 channel

Dimensions (H x W x D)                       : 197 mm x 95 mm x 36 mm

Display                                                    : Display readings from one or two probes

                                                                   Simultaneous readings from two probes (HQ40d only)

                                                                   pH: pH, mV, temperature

                                                                  Conductivity: Conductivity, TDS, salinity, resistivity, temperature

                                                                  LDO: dissolved oxygen, pressure, temperature

                                                                  LBOD: dissolved oxygen, pressure, temperature

                                                                  ORP/Redox: mV, temperature

                                                                  Sodium: Sodium, mV, temperature

Display Lock Function                         : Continuous measurement or "press to read" mode available with averaging
                                                                  function for LDO measurement.

Display Type                                          : 240 x 160 pixel Display readings from one or two probes
                                                                  Simultaneous readings from two probes
                                                                  pH: pH, mV, temperature
                                                                  Conductivity: Conductivity, TDS, salinity, resistivity, temperature
                                                                  LDO: dissolved oxygen, pressure, temperature
                                                                  ORP/Redox: mV, temperature
                                                                  Sodium: Sodium, mV, temperature

DO Measurement Range                    : 0.01 to 20 mg/L mg/L (0 to 200%)

DO Resolution                                      : 0.01 mg/L

Inputs                                                    : 2

nterface Languages                           : 13

nternal Data Storage                          : 500

IP Rating                                                : IP67

SE Direct Measurement Range        : Yes

SE Electrode Calibration                    : Electrode specific

Languages: Selectable                        : English, French, German, Italian, Spanish, Danish, Dutch, Polish, Portuguese,
                                                                  Turkish, Swedish, Czech, Russian

Measuring Range ORP                        : -1500 to 1500 mV

mV Accuracy                                         : ± 0.1 mV

mV Measurement at Stable Reading : 5 stabilization settings

mV Measurement Range                     : -1500 to 1500 mV

mV Resolution                                       : 0.1 mV

Operating Error Messages                  : Keypad

Operating Humidity                              : 90 % relative humidity (non-condensing)

Operating Interface                              : Keypad

Operating Temperature                       : 0 to 60 °C

ORP Electrode Calibration                  : Predefined ORP standards (including Zobell's solution)

Output                                                    : USB to PC / flash stick
                                                                  USB to PC / flash stick

Parameter                                             : pH, mV, ISE, DO, Conductivity, TDS, Salinity, Resistivity, ORP, Temp

pH Accuracy                                         : ± 0.002 pH

pH Electrode calibration                     : 5 stabilization settings

pH Measurement                                 : 0 to 14 pH

pH Measurement at stable reading  : 5 stabilization settings

pH Resolution                                       : Selectable between 0.001 - 0.1 pH
Power Requirements (Voltage)          : 6 V

Printer                                                     : Optional accessory

Probe Type                                             : Standard

Resolution                                              : 0.1/ 0.01/ 0.001

Salinity Measurement Range              : 0.01 ppt

Salinity Resolution                                : 0.01 ppt

Sample Temperature                            : 2 channels

Sodium resolution                                 : 0.001 mg/L (ppm)

Water Resistance: Meter Casing        : 1 meter submersion for 30 minutes (IP67)

Weight                                                     : 0.74 lbs. (0.335 kg)



PEMBELIAN SUDAH TERMASUK : HQ40D METER, Baterai 4 AA, power adapter, USB/DC power adapter for data transfer, quick-start guide and user manual.
