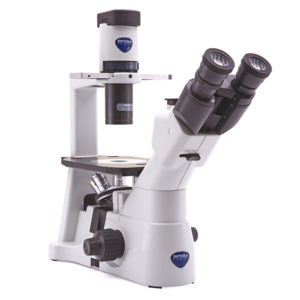

Model: IM-3
Inverted Microscopes , 400X perbesaran, X-LED8
BRIGHTFIELD & PHASE CONTRAST MICROSCOPE
IM-3 melihat tantangan masa depan dengan menawarkan kualitas optik kelas satu dan fleksibilitas mekanik, untuk memperluas penggunaannya dengan beberapa aksesoris. Memastikan observasi tingkat terang dan fase kontras tingkat atas, karena dilengkapi dengan satu set 3 Objective PH LWD W-PLAN IOS (10x, 20x dan 40x). X-LED8 efisiensi tinggi membuatnya dapat diandalkan untuk semua pengamatan cahaya yang ditransmisikan. Untuk solusi yang lebih lengkap, tersedia pilihan beberapa aksesori (objectives, translating stage, side extensions, holders and stage inserts).
SPESIFIKASI :
Observation mode: Brightfield, phase contrast.
Head: Trinocular (2-position 100/0, 50/50), 45° inclined.
Interpupillary distance: Adjustable between 50 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives:
IOS LWD W-PLAN PH 10x/0.25
IOS LWD W-PLAN PH 20x/0.40
IOS LWD W-PLAN PH 40x/0.65
All with anti-fungus treatment.
Specimen stage: Fixed stage, 250×160 mm, with glass and metal stage inserts.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: LWD pre-centered condenser, N.A. 0.30, W.D. 72 mm. With 4x/10x, 20x/40x phase contrast slider and brightfield. Removable to extend the working distance up to 150 mm.
Transmitted illumination:
X-LED8 with white 8 W LED (6,300K) with brightness control. With aperture diaphragm. Multi-plug 100-240Vac/6Vdc external power supply
