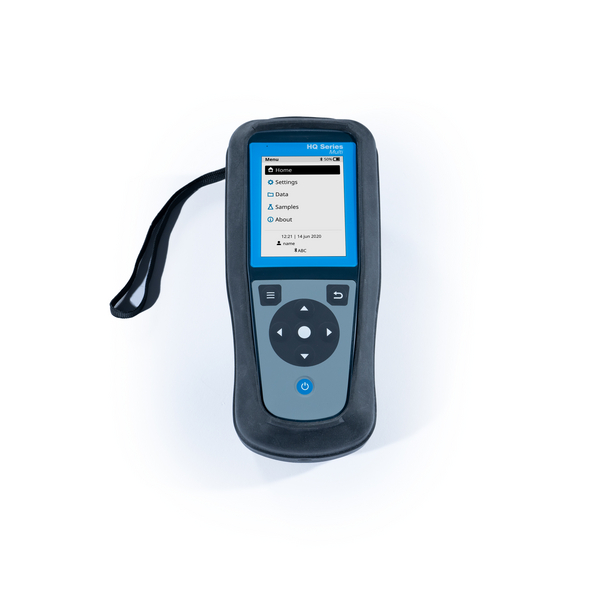

HACH, HQ2100 Portable Multi-Meter pH, Conductivity, TDS, Salinity, Dissolved Oxygen (DO), and Oxidation Reduction Potential (ORP)
Prod #LEV015.53.2100A
HQ series ditujukan untuk para profesional kualitas air yang ingin melakukan analisis elektrokimia untuk lingkungan lapangan dan laboratorium. Platform portabel baru kami akan memungkinkan Anda untuk mengumpulkan pengukuran yang intuitif dan akurat, mengelola data, dan meninjau hasil dengan mudah, sambil menyediakan rating ketangguhan IP67 yang kokoh. Mereka menyediakan solusi yang sesungguhnya tangguh dan siap digunakan di lapangan dengan panduan operasional langkah demi langkah yang visual di layar, yang memberikan keyakinan kepada pengguna dalam melaporkan dan mengelola hasil mereka. Berbeda dengan meter lapangan lainnya dengan antarmuka pengguna dasar dan tanpa akses data yang mudah, Seri HQ mengamankan, menyederhanakan, dan mempercepat seluruh proses pengukuran untuk pengguna lapangan.
Product Overview
Spesifikasi :
Accessories Included:No
Automatic Buffer Recognition:Yes
Backlight:Yes
Barometric Pressure Measurement:Automatic compensation of DO when using an LDO or LBOD probe
Calibration:Demal (1D/ 0.1D/ 0.01D);
Molar (0.1M/ 0.01M/0.001M);
NaCl (0.05%; 25µS/cm; 1000µS/cm; 18mS/cm);
Standard sea water;
User defined
Molar (0.1M/ 0.01M/0.001M);
NaCl (0.05%; 25µS/cm; 1000µS/cm; 18mS/cm);
Standard sea water;
User defined
Calibration Intervals/Alerts/Reminder:Off, selectable from 2 hours to 7 days
Certifications:CE, FCC, ISED, RCM, KC, ETL Verified: US DOE/ NRCan Energy Efficiency, RoHS
Conductivity measurement: Temperature correction:None; Linear; NaCl Non-Linear Natural Water.
Conductivity Measurement Range:Yes
Custom Calibration Standards:Yes
Data Export:USB connection to PC or USB storage device (limited to the storage device capacity).
Data Memory:10,000 data points
Data Storage:Automatic in Press to Read Mode and Interval Mode. Manual in Continuous Read Mode.
Dimensions (H x W x D):63 mm x 97 mm x 220 mm
Display:Up to 3 parameters at a time, dependent on HQ model
Display Lock Function:Continuous / Auto-stabilisation ("press to read") / At Interval
Display Type:536x336 Mono-TFT
DO Measurement Range:0.1 - 20.0 mg/L (ppm), 1 - 200% saturation
DO Resolution:0.1
Enclosure Rating:IP67 (with battery compartment installed)
GLP Features:Date; Time; Sample ID; Operator ID, Calibration
Inputs:1
Instrument:Portable
ISE Direct Measurement Range:No
ISE Electrode Calibration:No
Kit?:Meter only
Languages:English, Chinese - Simplified, Spanish, French, German, Italian, Japanese, Turkish, Dutch, Portuguese (PT & BR), Korean, Danish, Swedish, Polish, Norwegian, Hungarian, Greek, Finnish, Czech, Romanian, Croatian, Bulgarian, Slovak, Lithuanian, Estonian, Slovenian, Russian
Measurement method:Probe specific programmed method settings
Model:HQ2100 Multi/1 Channel
mV Measurement at Stable Reading:Yes
mV Measurement Range:Yes
mV Resolution:0.1 mV
Operating Error Messages:Clear text error messages displayed
Operating Humidity:90% (non-condensing)
Operating Interface:Soft Touch Keypad
Operating Temperature:0 - 60 °C
ORP Electrode Calibration:Predefined ORP standards (including Zobell's solution)
Parameter:pH, Conductivity, TDS, Salinity, Dissolved Oxygen (DO), Oxidation Reduction Potential (ORP)
pH Buffer Sets:Colour-coded: 4.01, 7.00, 10.01 pH;
IUPAC: 1.679, 4.005, 7.000, 10.012, 12.45
DIN: 1.09, 4.65, 9.23
User-defined custom buffer sets
IUPAC: 1.679, 4.005, 7.000, 10.012, 12.45
DIN: 1.09, 4.65, 9.23
User-defined custom buffer sets
pH Electrode calibration:1 - 3 Calibration points
Calibration summary data logged and displayed
Calibration summary data logged and displayed
pH Measurement Range:0 - 14 pH
pH Resolution:Selectable:
0.001/0.01/0.1 pH
0.001/0.01/0.1 pH
Power supply:Rechargeable lithium-ion battery 18650 (internal)
Class II, USB power adapter: 100 - 240 VAC, 50/60 Hz input; 5 VDC at 2 A USB power adapter output (external)
Class II, USB power adapter: 100 - 240 VAC, 50/60 Hz input; 5 VDC at 2 A USB power adapter output (external)
Probes included:None
Probe Type:Intellical Standard Laboratory or Rugged Field
Protection Class:IEC Class III (SELV (Separated/Safety Extra-Low Voltage) powered); external
Salinity Measurement Range:0 - 42 (ppt) (‰)
Salinity Resolution:0.01 (ppt) (‰)
Sensor A:None
Sensor B:None
Sensor C:None
Storage conditions:-20 - 60 °C, max. 90% relative humidity (non-condensing)
TDS Measurement Range:0.00 mg/L - 50.0 g/L NaCl
TDS Resolution:0.01 mg/L - 0.1 g/L upon measuring range
Temperature Compensation:Automatic Temperature compensation for pH
Temperature Measurement:°C or °F
Temperature Resolution:0.1 °C
Type of measurement:Field Measurements
Warranty:12 months
Weight:519 g (Meter only)
What's included?:HQ2100 Portable pH/ORP/EC/TDS/DO Meter, 1 channel, includes manuals, Li-Ion batteries, USB charger with Power Cable.
