HACH, HQ2200 Portable Multi-Meter with Dissolved Oxygen Electrode, 5 m Rugged Cable
Seri HQ ditujukan bagi para profesional kualitas air yang ingin melakukan analisis elektrokimia untuk lingkungan lapangan dan laboratorium. Platform portabel baru kami akan memungkinkan Anda mengumpulkan pengukuran yang intuitif dan akurat, mengelola data, dan meninjau hasil dengan mudah, sekaligus memberikan peringkat ketahanan IP67.
Seri HQ menyediakan solusi yang benar-benar tangguh dan siap digunakan di lapangan dan cara pengoperasian mudah, cepat, aman sehingga mempercepat proses pengukuran lengkap bagi pengguna lapangan.
Tipe HQ2200 Portable Multi-Meter ini dilengkapi dengan 2 channel.
Product Overview
Accessories Included: No
Automatic Buffer Recognition: Yes
Backlight: Yes
Barometric Pressure Measurement: Automatic compensation of DO when using an LDO or LBOD probe
Calibration Intervals/Alerts/Reminder: Off, selectable from 2 hours to 7 days
Certifications: CE, FCC, ISED, RCM, KC, ETL Verified: US DOE/ NRCan Energy Efficiency, RoHS
Data Export: USB connection to PC or USB storage device (limited to the storage device capacity).
Data Memory: 10,000 data points
Data Storage: Automatic in Press to Read Mode and Interval Mode. Manual in Continuous Read Mode.
Dimensions (H x W x D): 63 mm x 97 mm x 220 mm
Display: Up to 3 parameters at a time, dependent on HQ model
Display Type: 536x336 Mono-TFT
DO Measurement Range: 0.1 - 20.0 mg/L (ppm), 1 - 200% saturation
DO Resolution: 0.1
Enclosure Rating: IP67 (with battery compartment installed)
GLP Features: Date; Time; Sample ID; Operator ID, Calibration
Inputs: 2
Instrument: Portable
ISE Direct Measurement Range: No
ISE Electrode Calibration: No
Kit?: Yes
Languages: English, Chinese - Simplified, Spanish, French, German, Italian, Japanese, Turkish, Dutch, Portuguese (PT & BR), Korean, Danish, Swedish, Polish, Norwegian, Hungarian, Greek, Finnish, Czech, Romanian, Croatian, Bulgarian, Slovak, Lithuanian, Estonian, Slovenian, Russian
Lock Function: Continuous / Auto-stabilisation ("press to read") / At Interval
Measurement method: Probe specific programmed method settings
Model: HQ2200 Multi/2 Channels
mV Measurement at Stable Reading: Yes
mV Measurement Range: Yes
mV Resolution: 0.1 mV
Operating Error Messages: Clear text error messages displayed
Operating Humidity: 90% (non-condensing)
Operating Interface: Soft Touch Keypad
Operating Temperature: 0 - 60 °C
ORP Electrode Calibration: Predefined ORP standards (including Zobell's solution)
Parameter: Dissolved Oxygen
pH Buffer Sets: Colour-coded: 4.01, 7.00, 10.01 pH;
IUPAC: 1.679, 4.005, 7.000, 10.012, 12.45
DIN: 1.09, 4.65, 9.23
User-defined custom buffer sets
pH Electrode calibration: 1 - 3 Calibration points
Calibration summary data logged and displayed
pH Measurement Range: 0 - 14 pH
pH Resolution: Selectable: 0.001/0.01/0.1 pH
Power supply: Rechargeable lithium-ion battery 18650 (internal)
Class II, USB power adapter: 100 - 240 VAC, 50/60 Hz input; 5 VDC at 2 A USB power adapter output (external)
Probes included: LDO10105
Probe Type: Intellical Standard Laboratory or Rugged Field
Protection Class: IEC Class III (SELV (Separated/Safety Extra-Low Voltage) powered); external
Salinity Measurement Range: 0 - 42 (ppt) (‰)
Salinity Resolution: 0.01 (ppt) (‰)
Sensor A: LDO10105
Sensor B: None
Sensor C: None
Storage conditions: -20 - 60 °C, max. 90% relative humidity (non-condensing)
TDS Measurement Range: 0.00 mg/L - 50.0 g/L NaCl
TDS Resolution: 0.01 mg/L - 0.1 g/L upon measuring range
Temperature Compensation: Automatic Temperature compensation for pH
Temperature Measurement: °C or °F
Temperature Resolution: 0.1 °C
Type of measurement: Field Measurements
Weight: 541 g (Meter only)

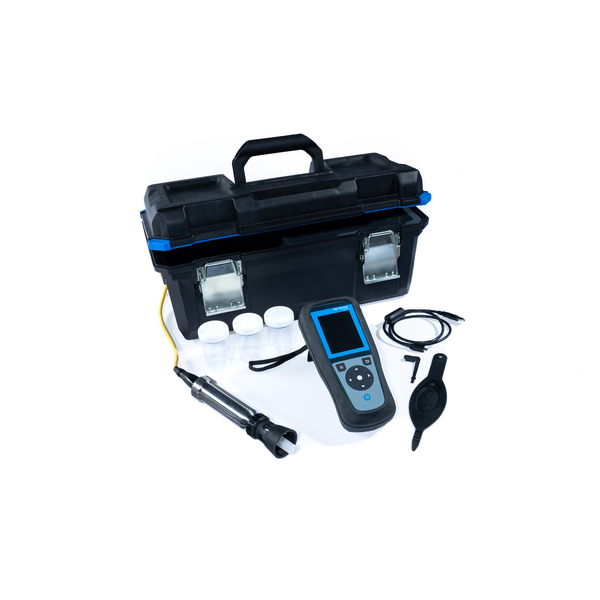

What's included?: HQ2200 Portable pH/ORP/EC/TDS/DO Meter, 2 channels for wastewater plant testing with Intellical LDO101 field luminescent/optical dissolved oxygen rugged electrode, 5 m rugged Cable. Field accessories included.
