HACH, HQ4300 Portable Multi-Meter with Gel pH, Conductivity, and Dissolved Oxygen Electrode, 1 m Cable
Seri HQ ditujukan bagi para profesional kualitas air yang ingin melakukan analisis elektrokimia untuk di lingkungan lapangan dan laboratorium.
Seri HQ4300 cara penggunaannya simpel, aman dan mudah digunakan serta hasil yang akurat sekaligus memberikan peringkat ketahanan IP67 sehingga sangat cocok digunakan di lapangan.
HQ4300 Portable Multi-Meter ini dilengkapi dengan 3 chanel dengan parameter yaitu pH, Conductivity, dan Dissolved Oxygen dengan panjang kabel 1 meter.
Product Overview
Spesifikasi :
Accessories Included: No
Automatic Buffer Recognition:Yes
Backlight:Yes
Barometric Pressure Measurement:Automatic compensation of DO when using an LDO or LBOD probe
Cable Length:1 m
Calibration Intervals/Alerts/Reminder:Off, selectable from 2 hours to 7 days
Certifications:CE, FCC, ISED, RCM, KC, ETL Verified: US DOE/ NRCan Energy Efficiency, RoHS
Data Export:USB connection to PC or USB storage device (limited to the storage device capacity).
Data Memory:100,000 data points
Data Storage: Automatic in Press to Read Mode and Interval Mode. Manual in Continuous Read Mode.
Dimensions (H x W x D) : 63 mm x 97 mm x 220 mm
Display : Up to 3 parameters at a time, dependent on HQ model
Display Type : 640x480 Colour TFT
DO Measurement Range : 0.1 - 20.0 mg/L (ppm), 1 - 200% saturation
DO Resolution : 0.1
Enclosure Rating : IP67 (with battery compartment installed)
GLP Features : Date; Time; Sample ID; Operator ID, Calibration
Inputs : 3
Instrument : Portable
ISE Direct Measurement Range: Yes
ISE Electrode Calibration : Yes
Kit? : Yes
Languages : English, Chinese - Simplified, Spanish, French, German, Italian, Japanese, Turkish, Dutch, Portuguese (PT & BR), Korean, Danish, Swedish, Polish, Norwegian, Hungarian, Greek, Finnish, Czech, Romanian, Croatian, Bulgarian, Slovak, Lithuanian, Estonian, Slovenian, Russian
Lock Function : Continuous / Auto-stabilisation ("press to read") / At Interval
Measurement method : Probe specific programmed method settings
Model: HQ4300 Multi/ISE/3 Channels
mV Measurement at Stable Reading : Yes
mV Measurement Range :Yes
mV Resolution : 0.1 mV
Operating Error Messages : Clear text error messages displayed
Operating Humidity : 90% (non-condensing)
Operating Interface : Soft Touch Keypad
Operating Temperature : 0 - 60 °C
ORP Electrode Calibration : Predefined ORP standards (including Zobell's solution)
Parameter : pH, Conductivity, Dissolved Oxygen
pH Buffer Sets:
Colour-coded: 4.01, 7.00, 10.01 pH;
IUPAC : 1.679, 4.005, 7.000, 10.012, 12.45
DIN : 1.09, 4.65, 9.23
User-defined custom buffer sets
pH Electrode calibration : 1 - 3 Calibration points
Calibration summary data logged and displayed
pH Measurement Range : 0 - 14 pH
pH Resolution : Selectable: 0.001/0.01/0.1 pH
Power supply : Rechargeable lithium-ion battery 18650 (internal)
Class II, USB power adapter: 100 - 240 VAC, 50/60 Hz input; 5 VDC at 2 A USB power adapter output (external)
Probes included : PHC10101, CDC40101, LDO10101
Probe Type : Intellical Standard Laboratory or Rugged Field
Protection Class : IEC Class III (SELV (Separated/Safety Extra-Low Voltage) powered); external
Salinity Measurement Range : 0 - 42 (ppt) (‰)
Salinity Resolution : 0.01 (ppt) (‰)
Sensor A: PHC20101
Sensor B: CDC40101
Sensor C: LDO10101
Storage conditions: -20 - 60 °C, max. 90% relative humidity (non-condensing)
TDS Measurement Range: 0.00 mg/L - 50.0 g/L NaCl
TDS Resolution: 0.01 mg/L - 0.1 g/L upon measuring range
Temperature Compensation: Automatic Temperature compensation for pH
Temperature Measurement: °C or °F
Temperature Resolution: 0.1 °C
Type of measurement: Field Measurements
Weight: 570 g (Meter only)
What's included?:

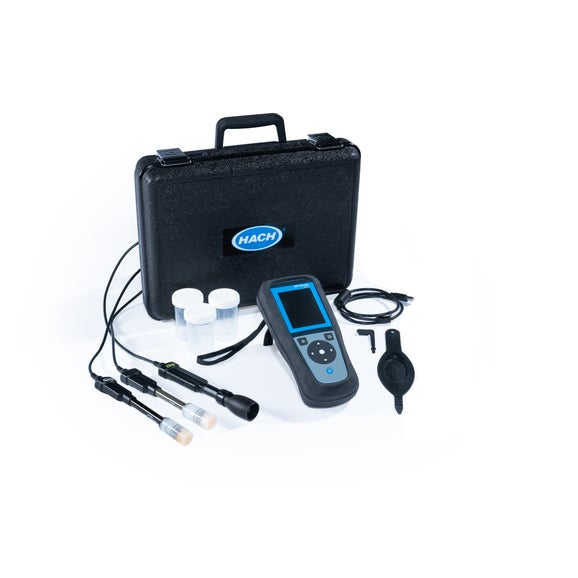

HQ4300 Portable pH/ORP/EC/TDS/DO Meter, 3 channels for wastewater plant testing with Intellical PHC201 pH, CDC401 Conductivity, and LDO101 electrodes, 1 m Cables. Field accessories included.
