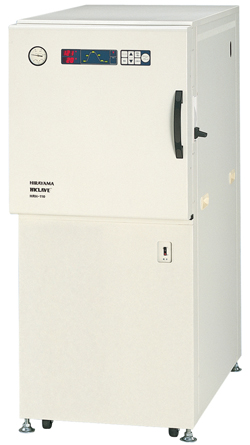

HIRAYAMA, HRH-110, 110L Fully Automatic Horizontal Autoclave with Drying Function
Prod #HRH110
Front-Loading Autoclave with Fully Automatic Drying Cycle Using Heat and Vacuum
Product Overview
HRH-110 FEATURES :
Front-loading design
Pengoperasian sepenuhnya otomatis dari awal hingga selesai dengan atau tanpa pengeringan.
Tuas penutup pintu sekali sentuh membuka dan menutup pintu dengan mudah, pasti dan aman.
Siklus pra-vakum - pompa vakum menghilangkan udara dari ruang ketika mensterilkan padatan seperti ujung gelas dan ujung pipet,
sehingga menghilangkan bintik-bintik dingin, dan memastikan sterilisasi yang lebih cepat dan lebih efisien.
Pengeringan oleh panas dan vakum meningkatkan efisiensi pengeringan dan mengurangi waktu siklus.
Mode pengeringan tambahan untuk pengeringan sempurna tanpa harus menjalankan siklus sterilisasi lagi.
Bakteri filter mengurangi kontaminasi ulang.
Interlock pengaman tutup mencegah tutup dari pembukaan selama siklus, ketika ruang bertekanan, atau ketika suhu ruang di atas 97 ° C
di mana cairan super-panas bisa mendidih ketika terganggu.
Sensor penutupan pintu mencegah siklus memulai kecuali pintu ditutup dengan benar.
Ukuran HRH-110: 110 liter, diameter 16,5 ", kedalaman 31,3".
HRH-110 Specifications
110L Fully Automatic Horizontal Autoclave with Drying Function
| HRH-110 | |
| Self-contained Design |
Does not require in-house steam, plumbing or a floor drain hole for installation
|
| Sterilization Temperature |
105ºC – 135ºC (programmable)
|
| Temperature Display Range |
5ºC - 137ºC
|
| Sterilization Timer |
1 ~ 60 min (remaining time displayed)
|
| Drying Timer |
1 ~ 120 min (remaining time displayed)
|
| Drying Method |
Vacuum pump and heating
|
| Sterilization and Operation Modes |
|
| Chamber Water Source |
Auto water filling from an internal 10-liter water tank
|
| Maximum allowable Pressure (Gauge Pressure) |
0.206 MPa (2.06 kg/cm2G)
|
| Chamber Size |
16.5" Diameter x 31.3" depth (420 Diameter x 795 depth) mm
|
| Chamber Material |
Stainless steel SUS304
|
| Outer Dimensions |
27.2W x 45.3D x 54.5H in, (690W x 1150D x 1385H) mm
|
| Pressure Gauge |
Analog display: -0.1 ~ 0.4 MPa (-1 to 4 bar)
|
| Safety Devices | Pressure relief valve, circuit breaker with GFCI, vacuum pump breaker, low-water power cut-off, insufficient water in the exhaust bottle warming lamp, error messages for 1) wire breakage in temperature sensor, 2) over-heating, 3) over-cooling, 4) over-pressure, and 5) door is not properly locked |
| Standard Accessories |
Drain hose, water supply hose, caster stopper
|
| Options |
1) Load sensor, square type wire basket, wire basket with solid bottom, dressing case, 2) Data logger, and 3) Digital printer
|
| Power Source/Consumption |
AC220V, 50/60Hz, 1 phase, 3.2kW
|
| Net Weight (approx.) |
462 lb, (210 kg)
|
