Sumber Aneka Karya Abadi - Your trusted partner for laboratory instrument

Nabertherm Indonesia | With their unbeatable price/performance ratio, these compact muffle furnace are perfect for many applications in the laboratory. Quality features like the dual shell muffle furnace housing of rust-free stainless steel, their compact, lightweight constructions, or the heating elements encased in quartz glass tubes make these models reliable partners for your application.

• Tmax 1100 °C, working temperature 1050 °C
• Heating from two sides from heating elements in quartz glass tubes
• Maintenance-friendly replacement of heating elements and insulation
• Multilayered insulation with fiber plates in the furnace chamber
• Housing made of sheets of textured stainless steel
• Dual shell housing for low external temperatures and high stability
• Flap door which can also be used as a work platform
• Exhaust air outlet in rear wall
• Solid state relays provide for low-noise operation
• Compact dimensions and light weight
• Controller mounted in side space (under the door on the LE 1/11, LE 2/11 and LE 4/11 to save space)

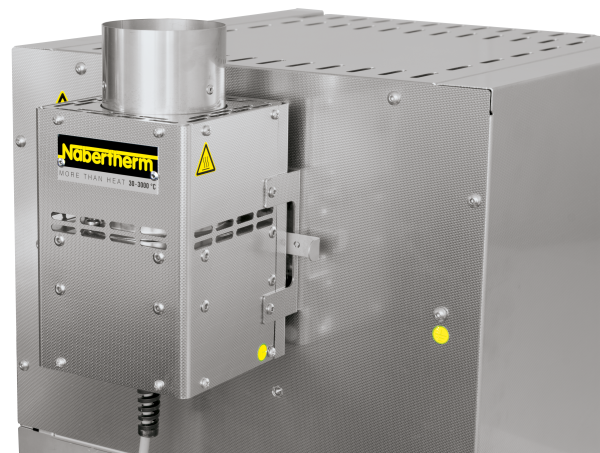

Additional equipment Chimney for Muffle Furnace :

• Chimney, chimney with fan or catalytic converter
• Over-temperature limit controller with manual reset for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the oven and load
• Protective gas connection on the rear wall of furnace
• Manual gas supply system
• Process control and documentation with Controltherm MV software package


Brosur klik disini


• ?
