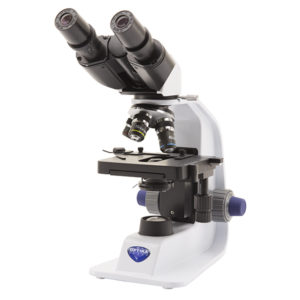

OPTIKA, B-157 , Binocular Microscope, 600X magnification
B-150 SERIES
Dapatkan gambar yang jelas pada tiga perbesaran (40x, 100x dan 400x) atau empat (40x, 100x, 400x dan 600x atau 1000x) dengan nomor bidang 18mm. Semua dalam ukuran yang ringkas dan mudah dibawa. Seluruh seri dilengkapi dengan pencahayaan 1W X-LED1 untuk cahaya yang terang dan seragam. Jika diperlukan mikroskop tanpa kabel, Model R adalah pilihan Anda karena dilengkapi dengan baterai yang dapat diisi ulang.
Product Overview
Observation mode: Brightfield.
Head: Binocular, 30° inclined; 360° rotating.
Eyepieces: WF10x/18 mm, secured by screw.
Nosepiece: Quadruple ball bearings revolving nosepiece.
Objectives:
– High Contrast Achromatic 4x/0.10 , with anti-fungus treatment
– High Contrast Achromatic 10x/0.25 , with anti-fungus treatment
– High Contrast Achromatic 40x/0.65 , with anti-fungus treatment
– High Contrast Achromatic 60x/0.85 , with anti-fungus treatment
Specimen stage: Mechanical stage, 125x116mm, 70×30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.
Illumination: X-LED1 with white 1 W LED and light intensity control.
Color temperature: 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply.
Product data sheet, klik disini
