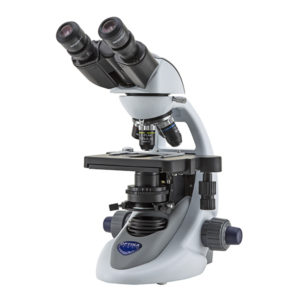

OPTIKA, B-292 Binocular microscope, 1000X
Prod #B-292
B-290 SERIES
Entry-Level Lab Upright Microscopes
Seri B-290 menggabungkan semua pengalaman yang dikumpulkan oleh Mikroskop OPTIKA di bidang mikroskop cahaya, diadaptasi khusus untuk aplikasi laboratorium umum. Cocok untuk mikroskop rutin dengan bidang terang, medan gelap, fase kontras dan fluoresensi LED, yang dirancang untuk bertahan lama.
Product Overview
B-292
Microskop Binokular, 1000X perbesaran
Binocular head with N-PLAN objectives, rackless stage and exclusive X-LED3 for unmatchable performance, powerful and uniform illumination.
SPESIFIKASI :
Observation mode: Brightfield.
Head: Binocular, 30° inclined and 360° rotating. Interpupillary distance 48-75 mm.
Dioptric adjustement: On the left eyepiece tube.
Eyepieces: WF10x/20 mm, high eye-point and secured by screw.
Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings.
Objectives:
N-PLAN 4x/0.10
N-PLAN 10x/0.25
N-PLAN 40x/0.65
N-PLAN 100x/1.25 (Oil/Water)
All with anti-fungus treatment.
Specimen stage: Double layer rackless mechanical sliding stage, 150×139 mm, 75×33 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable.
Illumination (Fixed Koehler type): X-LED3 with white 3.6 W LED (6,300 K) and light intensity control. Multi-plug 100-240Vac/6Vdc external power supply.
Head: Binocular, 30° inclined and 360° rotating. Interpupillary distance 48-75 mm.
Dioptric adjustement: On the left eyepiece tube.
Eyepieces: WF10x/20 mm, high eye-point and secured by screw.
Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings.
Objectives:
N-PLAN 4x/0.10
N-PLAN 10x/0.25
N-PLAN 40x/0.65
N-PLAN 100x/1.25 (Oil/Water)
All with anti-fungus treatment.
Specimen stage: Double layer rackless mechanical sliding stage, 150×139 mm, 75×33 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable.
Illumination (Fixed Koehler type): X-LED3 with white 3.6 W LED (6,300 K) and light intensity control. Multi-plug 100-240Vac/6Vdc external power supply.
Product Data Sheet , klik disini
