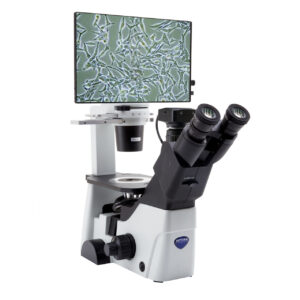

OPTIKA, DIGITAL INVERTED MICROSCOPE IM-300D
IM-300D
Inverted trinocular brightfield/phase contrast
microscope, IOS, 6MP camera with 15.6"
4K monitor
IM-300 melihat tantangan masa depan dengan penuh percaya diri, menawarkan kualitas optik kelas satu dan fleksibilitas mekanis, untuk memperluas penggunaannya dengan beberapa aksesori. Memastikan pengamatan brightfield dan kontras fase tingkat atas, karena dilengkapi dengan satu set 3 lensa objektif IOS LWD W-PLAN PH (10x, 20x, dan 40x). X-LED8 yang sangat efisien membuatnya andal untuk semua pengamatan cahaya transmisi. Untuk solusi yang lebih lengkap, pilih di antara beberapa aksesori yang tersedia (lensa objektif, meja mekanis, ekstensi samping, dudukan, dan sisipan meja). Model ini dilengkapi dengan PC mikro Intel, layar sentuh 15,6” 4K, kamera warna sensitivitas tinggi 6Mpx, perangkat lunak analisis gambar Optika ProView untuk fluoresensi, serta mouse dan keyboard nirkabel.
Product Overview
IM-300D
Inverted trinocular brightfield/phase contrast
microscope, IOS, 6MP camera with 15.6"
4K monitor
SPESIFIKASI :
Observation mode: Brightfield, phase contrast.
Head: Trinocular (2-position 100/0, 50/50), 45° inclined.
Interpupillary distance: Adjustable between 50 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives:
IOS LWD W-PLAN PH 10x/0.25
IOS LWD W-PLAN PH 20x/0.40
IOS LWD W-PLAN PH 40x/0.65
All with anti-fungus treatment.
Specimen stage: Fixed stage, 250×160 mm, with glass and metal stage inserts.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: LWD pre-centered condenser, N.A. 0.30, W.D. 72 mm. With 4x/10x, 20x/40x phase contrast slider and brightfield.
Transmitted illumination:
X-LED8 with white 8 W LED (6,300K) with brightness control. With aperture diaphragm. Multi-plug 100-240Vac/6Vdc external power supply
Digital equipment:
Intel micro PC, 15.6” touch screen 4K, a 6Mpx high-sensitivity color camera, Optika ProView image analisys software for fluorescence and wireless mouse and keyboard.
PRODUCT DATASHEET klik disini
