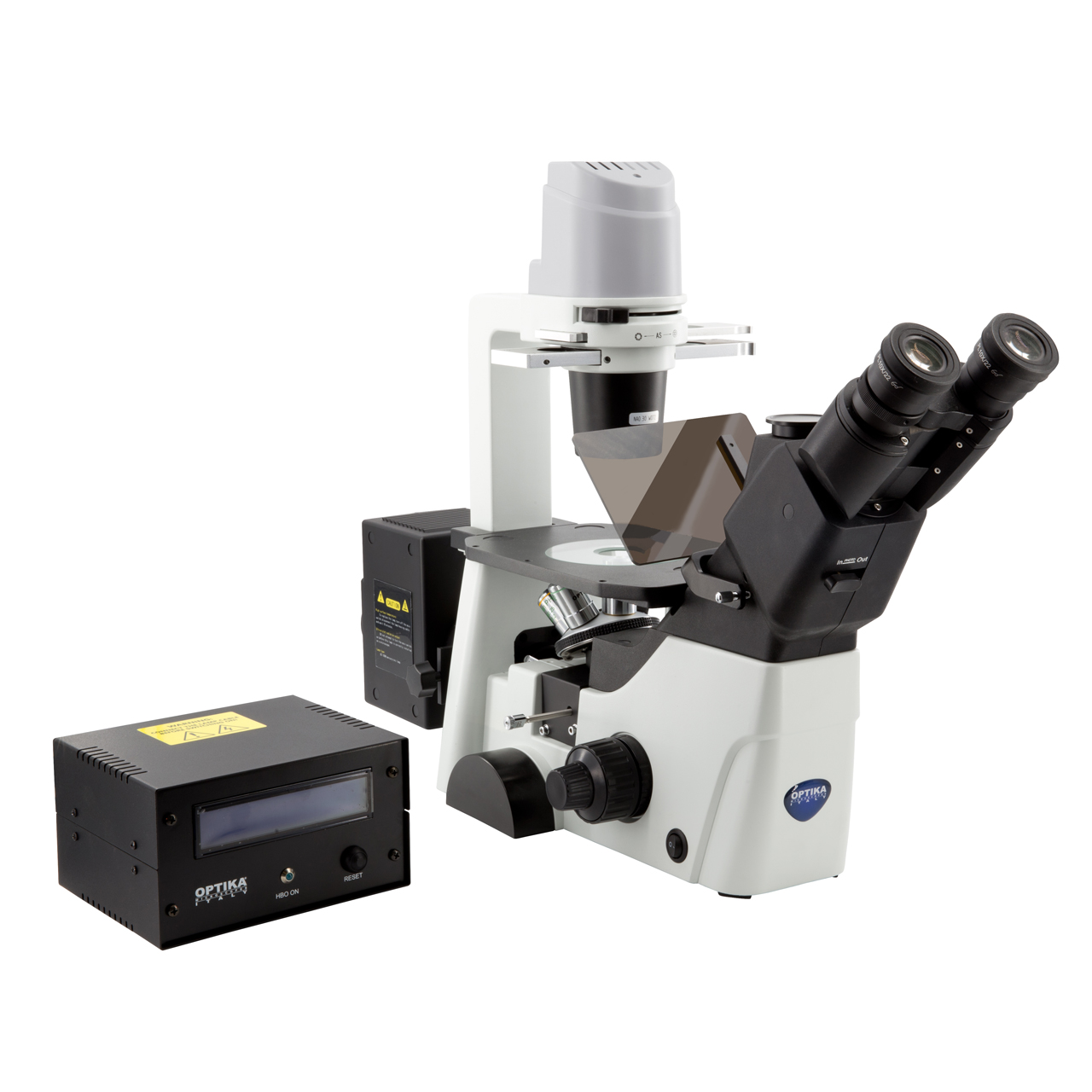

OPTIKA, IM-300F Inverted trinocular HBO fluorescence microscope
Inverted trinocular HBO fluorescence microscope, B & G filter sets, IOS
Model: IM-300F
Mikroskop fluoresensi terbalik rutin untuk pengamatan medan terang transmisi, kontras fase, dan fluoresensi dengan lensa objektif IOS LWD W-PLAN. Illuminator fluoresensi HBO dikombinasikan dengan set filter eksitasi biru dan hijau untuk visualisasi fluorokrom berikut: Akridin Kuning, Akridin Oranye, Auramin, DiO, DTAF, FITC, GFP, YFP, dll. (biru) ditambah Rhodamin, Texas Merah, dan TRITC (hijau). Cahaya transmisi melalui X-LED8 eksklusif untuk memastikan tampilan spesimen yang bagus, kaya, dan berkualitas tinggi.
Product Overview
Inverted trinocular HBO fluorescence
microscope, B & G filter sets, IOS
Model: IM-300F
SPESIFIKASI :
Observation mode: Brightfield, phase contrast, HBO fluorescence.
Epi-illumination and filter: HBO 100 W high pressure mercury lamp. 3-position filter holder; blue & green included.
Head: Trinocular (2-position 100/0, 0/100), 45° inclined.
Interpupillary distance: Adjustable between 50 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives:
IOS LWD W-PLAN PH 10x/0.25
IOS LWD W-PLAN PH 20x/0.40
IOS LWD W-PLAN PH 40x/0.65
All with anti-fungus treatment.
Specimen stage: Fixed stage, 250×160 mm, with glass and metal stage inserts.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: LWD pre-centered condenser, N.A. 0.30, W.D. 72 mm. With 4x/10x, 20x/40x phase contrast slider and brightfield.
Transmitted illumination:
X-LED8 with white 8 W LED (6,300K) with brightness control. With aperture diaphragm. Multi-plug 100-240Vac/6Vdc external power supply.
Standard filtersets
Name: B (Blue)
Excitation filter (nm): 465-495
Dichroic mirror cut-off (nm): 505
Emission filter (nm): 515LP
Name: G (Green)
Excitation filter (nm): 527-553
Dichroic mirror cut-off (nm): 565
Emission filter (nm): 575LP
PRODUCT DATASHEET klik disini
