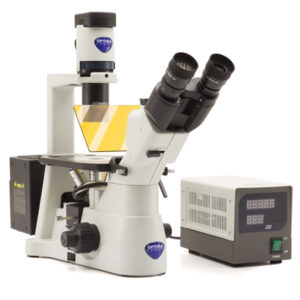

OPTIKA, IM-3F INVERTED FLUORESCENCE MICROSCOPE, 400X magnification
Prod #IM-3F
IM-3 SERIES
Routine Lab Inverted Microscopes
Inverted Microscope atau Mikroskop terbalik berguna untuk mengamati sel atau organisme hidup di bagian bawah wadah besar (mis., Labu kultur jaringan) dalam kondisi yang lebih alami daripada pada slide kaca, seperti halnya dengan mikroskop konvensional.
Seri IM-3 menyertakan versi untuk metode kontras dan fase terang secara bersamaan, direkayasa dan dirancang untuk menjadi solusi ideal Anda untuk inspeksi rutin yang cepat dan andal.
Permukaan panggung kaca memungkinkan akses visual yang optimal ke menara obyektif.
Desain optik yang sangat sederhana dan cerdas memungkinkan perataan yang stabil dan gerakan yang halus dan akurat.
Desain optik yang sangat sederhana dan cerdas memungkinkan perataan yang stabil dan gerakan yang halus dan akurat.
Product Overview
Model: IM-3F
INVERTED FLUORESCENCE MICROSCOPE
inverted fluorescence microscope atau Mikroskop fluoresensi terbalik rutin untuk brightfield yang ditransmisikan, kontras fase dan pengamatan fluoresensi dengan objective IOS LWD W-PLAN. The illuminator fluoresensi HBO dikombinasikan dengan filter eksitasi biru dan hijau ditetapkan untuk visualisasi fluorochromes berikut: Acridine Yellow, Acridine Orange, Auramine, DiO, DTAF, FITC, GFP, YFP, dll. (Biru) ditambah Rhodamine, Texas Red dan TRITC (hijau). Cahaya yang ditransmisikan melalui X-LED8 eksklusif untuk memastikan tampilan spesimen yang tampak hebat, kaya dan berkualitas tinggi.
SPESIFIKASI :
Observation mode: Brightfield, phase contrast, HBO fluorescence.
Epi-illumination and filter: HBO 100 W high pressure mercury lamp. 3-position filter holder; blue & green included.
Head: Trinocular (2-position 100/0, 0/100), 45° inclined.
Interpupillary distance: Adjustable between 50 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives:
IOS LWD W-PLAN 4x/0.13
IOS LWD W-PLAN PH 10x/0.25
IOS LWD W-PLAN PH 20x/0.40
IOS LWD W-PLAN 40x/0.65
All with anti-fungus treatment.
Specimen stage: Fixed stage, 250×160 mm, with glass and metal stage inserts.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: LWD pre-centered condenser, N.A. 0.30, W.D. 72 mm. With 4x/10x, 20x/40x phase contrast slider and brightfield. Removable to extend the working distance up to 150 mm.
Transmitted illumination:
X-LED8 with white 8 W LED (6,300K) with brightness control. With aperture diaphragm. Multi-plug 100-240Vac/6Vdc external power supply.
Epi-illumination and filter: HBO 100 W high pressure mercury lamp. 3-position filter holder; blue & green included.
Head: Trinocular (2-position 100/0, 0/100), 45° inclined.
Interpupillary distance: Adjustable between 50 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives:
IOS LWD W-PLAN 4x/0.13
IOS LWD W-PLAN PH 10x/0.25
IOS LWD W-PLAN PH 20x/0.40
IOS LWD W-PLAN 40x/0.65
All with anti-fungus treatment.
Specimen stage: Fixed stage, 250×160 mm, with glass and metal stage inserts.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: LWD pre-centered condenser, N.A. 0.30, W.D. 72 mm. With 4x/10x, 20x/40x phase contrast slider and brightfield. Removable to extend the working distance up to 150 mm.
Transmitted illumination:
X-LED8 with white 8 W LED (6,300K) with brightness control. With aperture diaphragm. Multi-plug 100-240Vac/6Vdc external power supply.
Standard filtersets
Name: B (Blue)
Excitation filter (nm): 450–490
Dichroic mirror cut-off (nm): 495
Emission filter (nm): 520LP
Excitation filter (nm): 450–490
Dichroic mirror cut-off (nm): 495
Emission filter (nm): 520LP
Name: G (Green)
Excitation filter (nm): 540–580
Dichroic mirror cut-off (nm): 585
Emission filter (nm): 590LP
Excitation filter (nm): 540–580
Dichroic mirror cut-off (nm): 585
Emission filter (nm): 590LP
