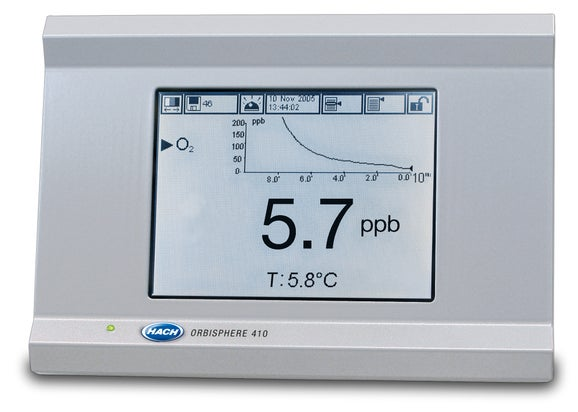

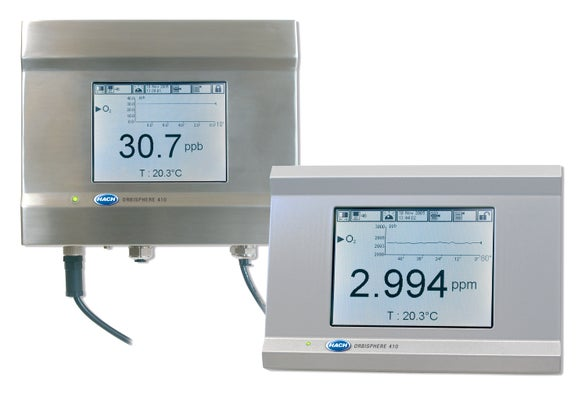

ORBISPHERE, 410 ORBISPHERE controller for O3 (EC) sensor
Prod #410C/P1C00000
Product Overview
SPECIFICATIONS :
Analog Outputs:
3 smart 0/4-20 mA (500 ohms), programmable as linear or tri-liniear, configurable to send diagnostics information
Communication:3 x 0/4-20 mA; RS485; Ethernet
Communication Capabilities:3 x 0/4-20 mA; RS485; Ethernet
Compatible Instruments:Channel 1 : 313xx or C1100
Compliance Certifications:EMC: EN61326-1:2006
CE: EN61010-1:2010
ETL, conforming to UL 61010-1 and CSA 22.2 No. 61010-1
CE: EN61010-1:2010
ETL, conforming to UL 61010-1 and CSA 22.2 No. 61010-1
Controller:410, Mono-channel
Data Storage:Rolling buffer or store once mode for up to 1000 measurements and 1000 operator actions
Holds calibration records for last 50 calibrations
Holds calibration records for last 50 calibrations
Dimensions (H x W x D):156 mm x 220 mm x 253.5 mm
Display:Colour TFT touchscreen display
Electrode Compatibility:Channel 1 : 313xx or C1100
Enclosure Construction:Panel Mount
Material:Aluminium
Measurements:Resolution, accuracy and response time are determined by sensor
Number of Channels:1
Operating Conditions:0 - 95 % non-condensing relative humidity
Operating temperature range:-5 - 50 °C
Parameter:O? (EC)
Password Protection:5 levels of authorised access to configuration and data management
Power:Universal 100/240 VAC @ 50/60 Hz, 25 VA
Power requirements (Voltage):100 - 240 VAC
Relays:
3 measurement alarm relays (2A to 30 VAC or 0.5 A to 50 VDC); configurable to send diagnostics information
1 system alarm relay (2 A to 30 VAC or 0.5 A to 50 VDC)
1 system alarm relay (2 A to 30 VAC or 0.5 A to 50 VDC)
Units:
Gas concentration: Configurable for gas or liquid phase with multiple unit options
Pressure: External and barometric pressure with multiple unit options
Temperature: Sample temperature with unit options (K, °C, °F)
Pressure: External and barometric pressure with multiple unit options
Temperature: Sample temperature with unit options (K, °C, °F)
User Interface:Touch screen panel displays: concentration, trend graph, diagnostics, alarm status, historical data
Weight:2.9 kg
What's included?:Orbisphere 410 Controller, Mounting Bracket, User Manual
