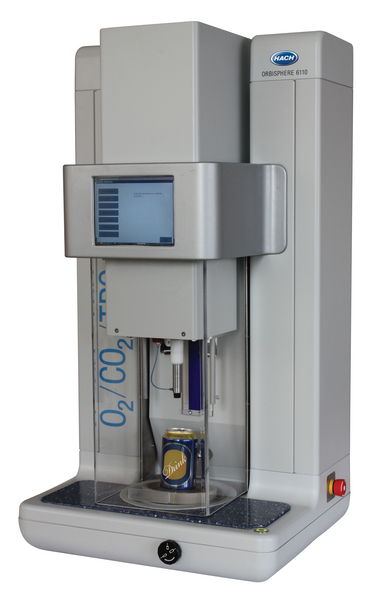

ORBISPHERE, Orbisphere 6110 Total O2/CO2 Package analyzer & Installation Kit

Prod #DG6110-SYS

Live Chat Request Quote

Orbisphere 6110 menawarkan teknologi terbaru untuk pengukuran Oksigen dalam kemasan akhir , Headspace Oksigen dan Oksigen Terlarut; serta Karbon Dioksida Terlarut dan Headspace Volume. Orbisphere 6110 telah dirancang untuk memenuhi kebutuhan praktis antara laboratorium dan lapangan. Kualitas tinggi dengan layar sentuh memfasilitasi pengguna dalam pengukuran pada semua jenis dan ukuran kaleng atau botol, serta memberikan informasi penting pada kewajaran instrumen. Pemanfaatan alat ini telah terbukti memberikan informasi penting yang berkualitas dari kemasan akhir, meningkatkan pengendalian proses dan kualitas minuman. Cepat, Operasi Efektif, Handal dan Fleksibel, Pengukuran Tahap Gas, Maksimalkan Uptime dari Total Package Analyzer 6110.

Product Overview

Spesifikasi :

Communication Capabilities	1 x USB client, 1 x USB host, 1 x Ethernet
Compliance Certifications	European directives: Low voltage 2006/95/EC; EMC 2004/108/EC Electromagnetic compatibility standards: EN61326 Safety standard: IEC/UL/CSA 61010-1 Safety of Laser products: IEC/UL/CSA 60825-1
Dimensions (H x W x D)	942 mm x 540 mm x 537 mm
Display Type	Digital TFT VGA (640 x 480) color touch screen
Enclosure Rating	IP20
Installation Requirement	Power requirements: 100/240 VAC, 50/60 Hz Purge gas: CO₂ with purity >99.9% at 6 to 7 bar abs (87 to 102 psi)
Operating Conditions	Package temperature: -2 to 30 °C (28 to 86 °F) Package pressure: 1.4 to 6.8 bar (20 to 73 psi) Ambient temperature: 0 to 40 °C (32 to 104 °F)
Operating System	Windows^® CE 4.2
Package Settings	Closure types: metallic, PET Package height: min. 90 mm (3.54 in.) max. 340 mm (13.39 in.) Package volume: min. 150 mL
Power Consumption	250 VA maximum
Power Requirements (Hz)	50/60 Hz
Power Requirements (Voltage)	100/240 VAC
Range	O₂: 1 ppb to 12 ppm CO₂: 0.75 to 5 v/v or 1.5 to 10 g/kg
Repeatability	TPO: ±5 µg/L ±10 %, whichever the greater CO₂: ±0.05 v/v or 0.10 g/kg ±2 %, whichever is greater, measured on equilibrated packages at 10 to 25 °C
Typical Analysis Time	Approximately 4 minutes
Units	O₂ Concentration: ppb, ppm CO₂ Concentration: v/v, g/kg, g/L %W Total Package Quantities: mg, mL, mg/L,mL/L, µg/L Pressure: bar, mbar, psi Temperature: °F, °C, K
Weight	121.25 lbs. (55 kg)
