SAUTER, DB 0.5-4 Torque Meter
Prod #DB 0.5-4

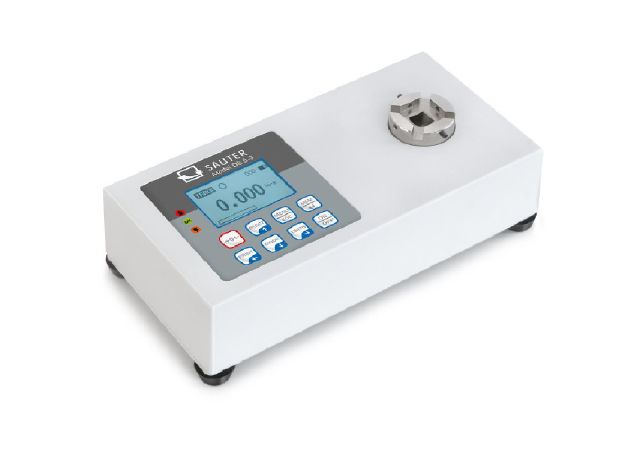

Torque Meter DB 0.5-4
PT SAKA Menjual Torque Meter Sauter yang dilengkapi dengan sertifikat kalibrasi. Alat ini sangat praktis dan cocok untuk digunakan oleh labolatorium. Fungsi Torque Meter Sauter ini adalah untuk mengukur tenaga putaran pada kunci pas dan obeng. Kestabilan dan ketepatannya membuatnya menjadi kebutuhan bagi proses manufaktur.
Measuring range (max) : 0.5 Nm
Lihat Juga : Torque Meter DA 1-4 Kern
Product Overview
-

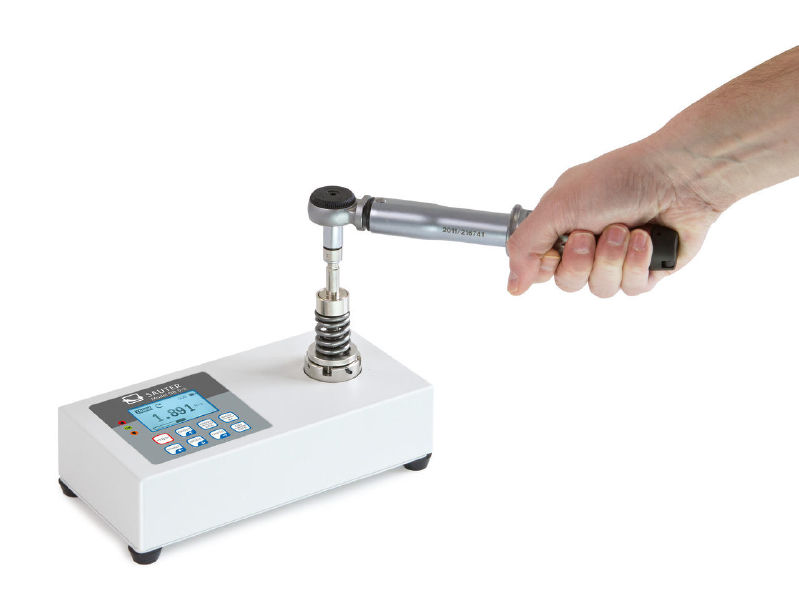

Particularly suitable for testing torque wrenches, electric hand screwdrivers and cordless screwdrivers
-

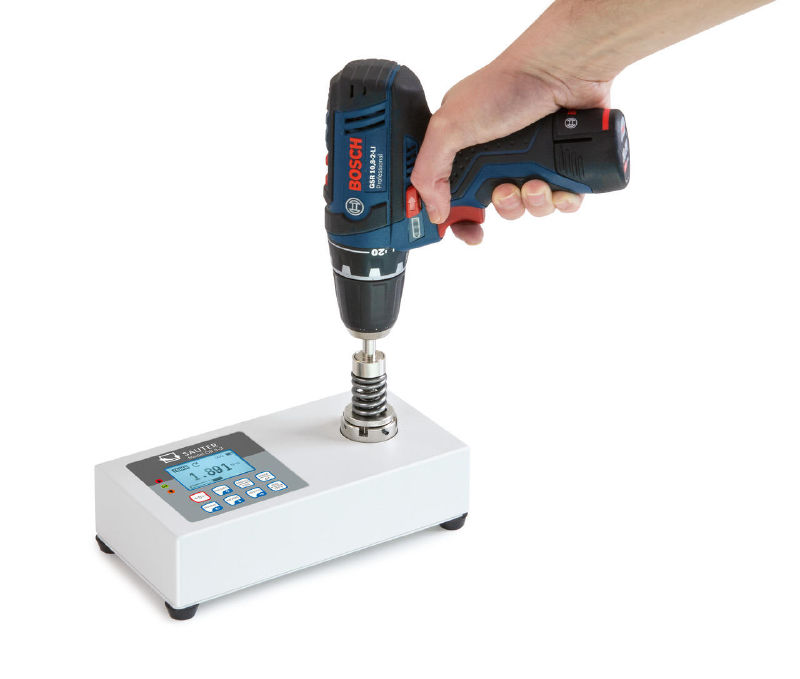

Rotary sensor for dynamic testing of electric screwdrivers (for models with [Max] ≤ 50 Nm)
- Measurement precision: +/- 0,5% of [Max]
- Metal housing for durable usage in harsh environmental conditions
- Capacity display: A bar lights up to show how much of the measuring range is still available
- Back-lit LCD graphic display
- num/1] Rubber feet with anti-slip feature (for models with [Max] ≤ 10 Nm)
-
Robust mounting plate for secure fixing (for models with [Max] ≥ 20 Nm)
- USB and RS 232 data interfaces to the PC included

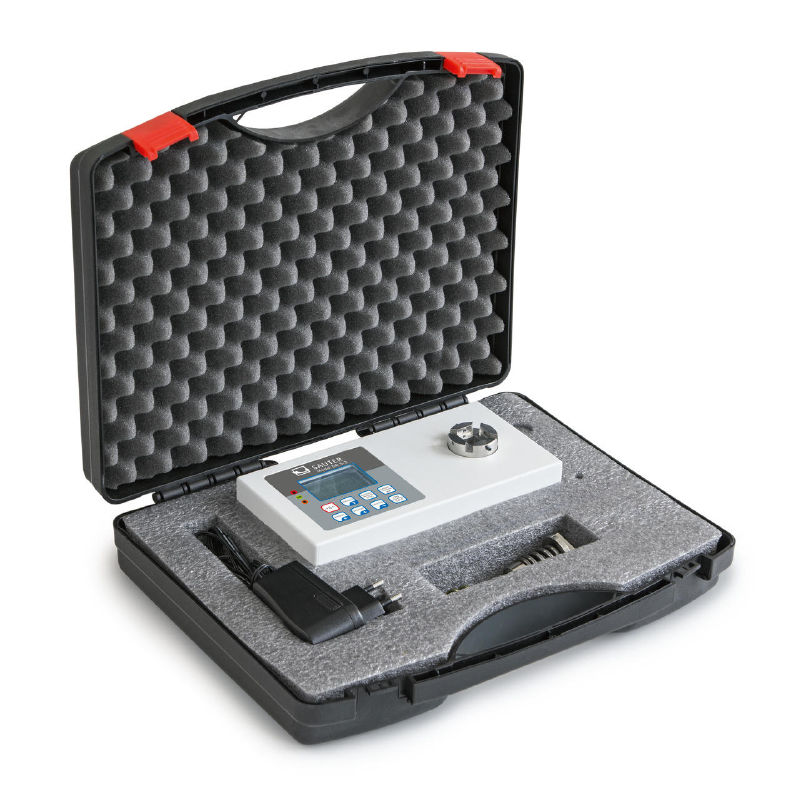

- Scope of supply: rotary sensor, sturdy carry case, mounting plate (for models with [Max] ≥ 20 Nm)
- Internal data memory saves up to 500 measurements. The content of the memory can be transferred to the PC using optional software
- Real time or Peak Hold Mode to observe transcients or capture peaks
- Can be used in both directions of rotation
- Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed. The process is supported by an acoustic and visual signal
- AUTO-OFF function
- Illustration may show an application example, decoration not included
