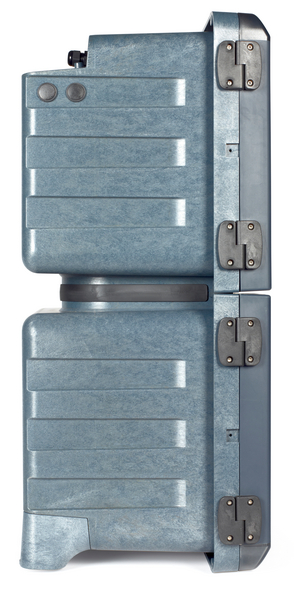

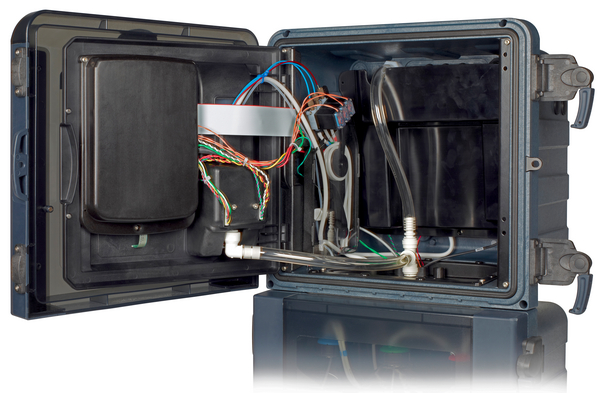

HACH ONLINE, 5500 sc Phosphate Low Range Analyzer, 1 Channel, Reagents Included

Prod #5500.KTO.PL.A1U

Lower Maintenance, Less Downtime

5500sc Phosphate Analyzer hanya membutuhkan dua liter reagen untuk bekerja tanpa pengawasan hingga 90 hari , dua kali lebih lama dari Seri 5000. Hemat waktu perawatan dan pemeliharaan.  LED peringatan dan layar pemberitahuan  visibilitas tinggi memungkinkan Anda menghindari waktu henti yang  tidak direncanakan.  Penggantian reagen bersih, cepat dan mudah. Cukup cocokkan tutup kode warna ke botol reagen yang disegel dan putar perlahan. Fitur Grab Sample In dan Grab Sample Out  memungkinkan analisis cepat dari sampel yang diambil ke dalam Analyzer , dan memfasilitasi pengambilan sampel dari Phosphate Analyzer online untuk diverifikasi di laboratorium.



Product Overview

What's in the box :

5500sc analyzer, reagents set for up to 90 days of use, installation kit, Hach user manuals



Specifications :

Accuracy :
LR model: ±4 µg/L or ±4% of reading, whichever is greater;
HR model: ±500 µg/L or ±5% of reading, whichever is greater
Alarm :
Four relays output; type: not powered SPDT relays, each rated at
5 A resistive, 240 VAC maximum
Connection: 18 to 14 AWG wire, 18 AWG stranded recommended
Application : Pure water / Power
Certifications :
CE (EN 61326-1: 2006; EN 61010-1: 2010; EN 60529: 1991, +A1:2000 )
KC (EN 61326-1: 2006)
C-tick (EN 61326-1: 2006)
cETLus (UL 61010-1: 2012; NEMA 250: 2003; CSA C22.2 No 61010-1: 2012)
Controller Compatibility : sc200, sc1000
Enclosure Rating : IP56 / NEMA 4X
Fitting Type :
Sample line and sample bypass drain: 6 mm (¼-in.)

Air purge inlet: 6 mm (¼-in.) Chemical and case drains: 9.5 mm (3/8-in.)
Grab Sample : Grab Sample In and Grab Sample Out capability
Light Source :
Class 1M LED (light emitting diode) with a peak
wavelength of 810 nm
Lower Limit of Detection (LOD):
LR model: 4 µg/L

HR model: 200 µg/L
Manual Languages:
English
French
Spanish
B. Portuguese
Chinese
Japanese
Korean
Thai
German
Italian
C. Portuguese
Czech
Danish
Dutch
Polish
Swedish
Finnish
Bulgarian
Hungarian
Romanian
Lithuanian
Russian
Turkish
Slovak
Slovenian
Croatian
Greek
Estonian
Measuring Principle : Colorimetric
Mounting : Wall, panel or table
Number of Channels : 1
Operating Humidity : 5 - 95 % non-condensing (indoor use only)
Operating Temperature Range : 5 - 45 °C
Output : 4 - 20 mA
Parameter : Low Range Phosphate
Pollution Degree : 2/II
Power Requirements (Hz) : 50/60 Hz
Power Requirements (Voltage) : 100 - 240 VAC
Protection Class: I
Range : 4 - 3000 µg/L as PO4
Reagent Consumption : 2 L of each reagent every 90 days with 15 minute cycle time
Relays : Four; type: not powered SPDT relays, each rated at 5 A resistive, 240 VAC maximum
Repeatability :
LR model: ±1%
HR model: ±500 µg/L or ±5% of reading, whichever is greater
Response Time : Typically, 9.5 minutes at 25 °C (77 °F); changes with temperature
Sample Flow Rate : 55 - 300 mL/min
Sample Pressure : 2 - 87 psi (to Preset Pressure Regulator)
Sample Temperature : 5 - 50°C (41 - 122°F)
Storage Conditions : -20 - 60 °C
Weight : 20 kg (45 lb) without reagents and standards, 36.3 kg (80 lb) with reagents
