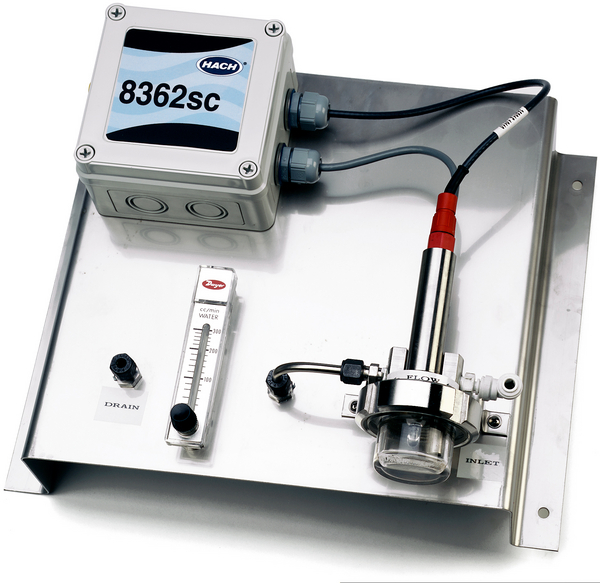

HACH ONLINE, 8362sc High Purity Water pH Panel

Prod #6178000

Product Overview

Spesifikasi :

Accuracy

ORP ± at 25°C
(constant flow)

Accuracy 2

± 0.1 pH at 25°C below 1 µS/cm (constant flow)

Cable Length

7.7 m (25 ft.), supplied

Contents

316 stainless steel back panel with pH or ORP sensor, flowmeter, and junction box Temperature probe: Pt100

Depth

(12.0 x 15.1 x 6.5 in.)

Dimensions (H x W x D)

304.8 mm x 384.2 mm x 165.1 mm

Flow Rate

100 to 300 mL/min 304.8 x 384.2 x 165.1 mm

Measuring Range ORP

-1500 to 1500 mV

Measuring Range pH

at 0 to 80°C (32 to 176°F) 2 to 12 ph

Operating Humidity

0 to 100 % non-condensing

Operating Pressure

4 bar at 25°C (58 psi), maximum

Operating Temperature Range

0 to 60 °C

Parameter

pH

pH Accuracy

± 0.01 pH
± 0.05 pH at 25°C above 1 µS/cm (constant flow)

Pressure Range

to (58 psi)

Repeatability

ORP ± at 25°C
(constant flow)
pH 0.01 pH to 0.01 pH pH at 25°C (constant flow)

Temperature Accuracy

0.1°C between 0 °C to 80 °C °C (32 to 176°F)

Weight

7.94 lbs. (3.6 kg)
