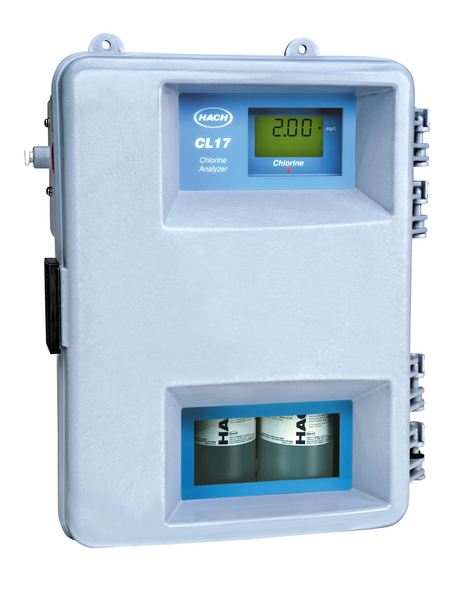

HACH ONLINE, CL17 Free Chlorine Analyzer
CL17 menggunakan kimia colorimetri DPD untuk memantau konsentrasi residu dan total klorin secara terus menerus. CL17 merupakan solusi sederhana, dapat diandalkan dan ekonomis serta pilihan yang lebih disukai untuk instrument “high-maintenance” yang membutuhkan frekuensi kalibrasi tinggi. Metode analisa CL17 “robust” dan tidak terpengaruh oleh perubahan konsentrasi klorin, pH sampel, suhu, arus atau tekanan sehinga menghasilkan akurasi dan reabilitas yang tinggi. Pemeliharaan rutin bulanan untuk CL17 biasanya dapat dilakukan dalam 15 menit, termasuk penggantian reagent dan pembersihan sel colorimetri. Tidak membutuhkan waktu khusus. Dalam penggunaan normal CL17 akan beroperasi tanpa pengawasan selama 30 hari. EPA Compliant CL17 ini kompatibel dengan US EPA peraturan CFR 140.74 dan kedua metode 4500-CL G dan metode 334.0 dapat digunakan untuk pengukuran residu dan total klorin dalam air minum.
Product Overview
Spesifikasi :
|
Accessories Included |
None |
|
Accuracy |
± 5 % or ±0.03 mg/L (ppm) as CL₂, whichever is greater. |
|
Air Purge |
0.1 cfm (0.17 m³/h) instrument quality air at max. 20 psi (ca.1.4 bar) with ¼" OD tube, quick disconnect fitting |
|
Alarm |
Two alarms selectable for sample concentration alarm, analyser system warning, or analyser system shut-down alarm. Each is equipped with an SPDT relay with contacts rated for 5A resistive load at 230 V AC. |
|
Communication Capabilities |
4-20mA Output |
|
Cycle Time |
2.5 min |
|
Dimensions (H x W x D) |
454 mm x 314 mm x 179 mm |
|
Display |
LCD, 3.5 inch digit measurement readout and six-character alphanumeric scrolling text line |
|
Enclosure Construction |
ABS plastic, two clear polycarbonate windows, IP62-rated with the gasketed door latched. |
|
Inlet |
¼" OD polyethylene tube, quick-disconnect fitting |
|
Inlet Pressure |
1 to 5 psi (0.07 - 0.34 bar), 1.5 psi is optimum |
|
Interferences |
Other oxidizing agents such as bromide, chlorine dioxide, permanganate and ozone will cause a positive interference. Hexavalent chromium will cause a positive interference: |
|
Light Source |
Class 1 LED (light emitting diode) with a peak wavelength of 520 nm; 50,000 hours estimated minimum life |
|
Lower Limit of Detection (LOD) |
0.03 mg/L (ppm) |
|
Mounting |
Wall mount |
|
Operating Humidity |
Up to 90 % at 40 °C (104 °F) maximum |
|
Operating Temperature Range |
5 to 40 °C |
|
Power Requirements (Amps) |
2.5 A |
|
Power Requirements (Hz) |
50/60 Hz |
|
Power Requirements (Voltage) |
100 - 115/230 V AC |
|
Pressure Range |
Inlet Pressure to Sample Conditioning: 1.5 to 75 psi (0.1 to 5.2 bar) |
|
Range |
0 to 5 mg/L free or total residual chlorine |
|
Recorder Outputs |
One 0/4-20 mA with an output span programmable over any portion of the 0 to 5 mg/L range. Recommended load impedance 3.6 to 500 ohms, 130 V isolation from earth ground. |
|
Repeatability |
0.01 ppm or 3.0 % , whichever is greater |
|
Sample Flow Rate |
200 to 500 mL per minute minimum required |
|
Sample Temperature |
5 to 40 °C (41 to 104 °F) |
|
Weight |
23.13 lbs. (10.49 kg) |
