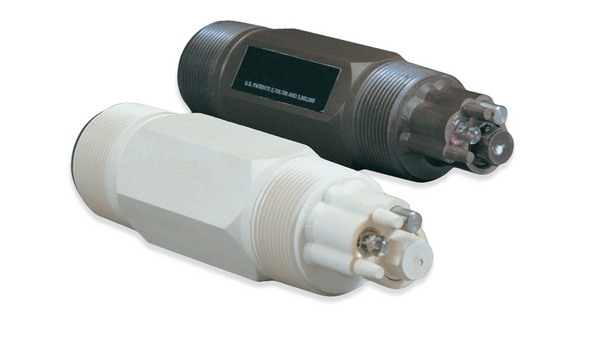

HACH ONLINE, Differential 1.5" pH sensor, LCP, 5-wire, 3 m cable
Prod #6028P0
Product Overview
Specifications :
Body material : LCP
Cable Length : 3.0 m 10 ' 5-conductor (plus shield)
Cable Length 2 : 10 ' 5-conductor (plus shield)
Diameter : 55 mm
Drift : 0.03 pH per 24 hours, non-cumulative
Electrode Material : Glass
Flow : max. 3 m/s
Junction : Kynar Junction
Length : 180 mm
Material : Ground Electrode: Titanium or Hastalloy C
Measuring Range ORP : ORP: -2000 - +2000 mV
Mounting : Convertible
Operating Temperature Range : -5 - 95 °C
Pressure Range : max. 10.7 bar sensor only (pressure range of mounting hardware to be checked separately)
Range : 0 - 14 pH
Sensitivity : < 0.005 pH
Sensitivity 2 : ORP: < 0.5 mV
Sensor Thread : 1.5" NPT at both ends
Temperature Range : -5 - 95 °C
Temperature Sensor : NTC 300 ohm thermistor for automatic temperature compensation and analyzer temperature readout
Weight : 0.6 kg
What's included? : Includes: sensor with 10 ft cable and manual
