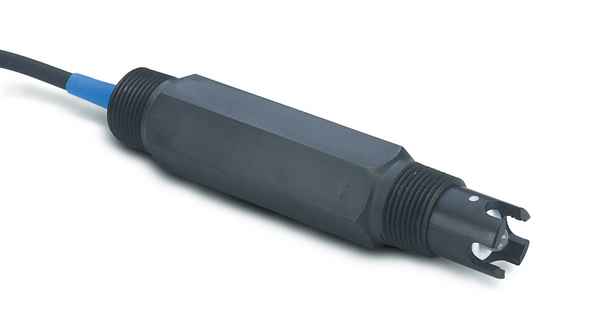

HACH ONLINE, GLI Digital 3/4 Inch Combination pH/ORP Sensor, Convertible Style, PPS Body, Flat Glass Electrode
Prod #DPC1R1N
Product Overview
SPECIFICATIONS :
Accuracy:0.1 pH under reference conditions
Body Material:PPS
Electrode Material:General Purpose Glass pH Electrode
Flow:0 m/s (0 - 6.6 ft./s); non-abrasive
Measuring Range ORP:-2000 a +2000 mV
Operating temperature range:0 - 105 °C
pH Range:0 - 14 pH
Pressure Range:0 - 6.9 bar at 100ºC (0 - 100 psig at 212ºF)
Range:Combination pH Sensors 0 - 14 pH
Sensor Cable:Integral coaxial cable (plus two conductors for temperature compensator option); 4.5 m (15 ft.) long
Sensor Thread:0.75"
Specifications : Most pH applications fall in the 2.5-12.5 pH range. General purpose pH glass electrodes perform well in this range. Some industrial applications require accurate measurements and control at pH values below 2 or above 12. Consult Hach Technical Support for details on these applications.
Temperature Compensation : None
Transmission Distance : Signal Transmission Distance 1000 m (3280 ft.) when used with the Hach Digital Gateway, Termination Box, and SC Controller.
Wetted Materials : PPS body (glass filled)
What's included? : Includes: sensor with 15 ft cable, digital gateway, 3 ft digital extension cable and manual
