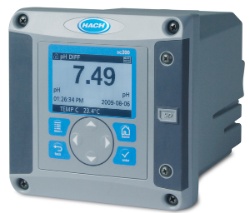

HACH ONLINE, SC200 Universal Controller: 100-240 V AC with one digital sensor input and two 4-20 mA outputs
Prod #LXV404.99.00502
Hach Universal Controller SC200 adalah controller serbaguna yang dapat dikoneksikan dengan sensor digital maupun sensor analog. SC200 adalah controller pengganti controller analog SC100 dan GLI53 dengan berbagai fitur tambahan yang lebih mudah untuk dioperasikan. beberapa modul komunikasi juga dapat ditambahkan untuk beberapa variasi seperti MODBUS RTU, Profibus DPV1, dan HART. Controller SC200 dapat dikoneksikan pada sensor dan dapat menganalisa hingga 17 parameter termasuk pH/ORP, Oksigen terlarut (dissolved oxygen), klorin, konduktivitas, aliran , kekeruhan (turbidity), dan berbagai parameter lainnya.
Product Overview
Spesifikasi :
Analog Output Functional Mode : Linear, logarithmic, bi-linear, PID
Analog Outputs : Two (Five with optional expansion module) isolated current outputs, max 550 Ω, Accuracy:± 0.1% of FS (20mA) at 25 °C, ± 0.5% of FS over -20 °C to 60 °C range
Operational Mode : measurement or calculated value
Operational Mode : measurement or calculated value
Communication : MODBUS RS232/RS485, PROFIBUS DPV1, or HART 7.2 optional
Standard (2x 4-20 mA outputs)
Communication Capabilities : 2x 4-20 mA Out
Conduit Openings : 1/2" NPT Conduit
Dimensions (H x W x D) : 144 mm x 144 mm x 181 mm
Display : Graphic dot matrix LCD with LED backlighting, transreflective
Display Resolution : 240 x 160 pixels
Display Size : 48 x 68 mm
Electrical Certifications:EMC
CE compliant for conducted and radiated emissions:
- CISPR 11 (Class A limits)
- EMC Immunity EN 61326-1 (Industrial limits)
Safety
cETLus safety mark for:
- General Locations per ANSI/UL 61010-1 & CAN/CSA C22.2. No. 61010-1
- Hazardous Location Class I, Division 2, Groups A,B,C & D (Zone 2, Group IIC) per FM 3600 / FM 3611 & CSA C22.2 No. 213 M1987 with approved options and appropriately rated Class I, Division 2 or Zone 2 sensors
cULus safety mark
- General Locations per UL 61010-1 & CAN/CSA C22.2. No. 61010-1
CE compliant for conducted and radiated emissions:
- CISPR 11 (Class A limits)
- EMC Immunity EN 61326-1 (Industrial limits)
Safety
cETLus safety mark for:
- General Locations per ANSI/UL 61010-1 & CAN/CSA C22.2. No. 61010-1
- Hazardous Location Class I, Division 2, Groups A,B,C & D (Zone 2, Group IIC) per FM 3600 / FM 3611 & CSA C22.2 No. 213 M1987 with approved options and appropriately rated Class I, Division 2 or Zone 2 sensors
cULus safety mark
- General Locations per UL 61010-1 & CAN/CSA C22.2. No. 61010-1
Enclosure Rating : IP66 / NEMA 4X
Length : 181 mm
Manual Languages : Bulgarian, Chinese (PRC), Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Lithuanian, Polish, Portuguese (Brazil), Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish
Material Enclosures : Polycarbonate
Aluminium (powder coated)
Stainless steel
Aluminium (powder coated)
Stainless steel
Mounting Configurations : Wall
Pole
Panel Mounting
Pole
Panel Mounting
Operating Temperature Range : -20 - 60 °C at 0 - 95% RH (non-condensing)
Power Options : 100-240V AC, No Power Cord
Power Requirements (Hz) : 50 - 60 Hz
Power Requirements (Voltage) : 100 - 240 VAC
Power Supply : Without power cord
Region : US
Relay : Operational Mode:Primary or secondary measurement, calculated value (dual channel only) or timer
Relay Functions : Scheduler (timer), alarm, feeder control, event control, pulse width modulation, frequency control, and warning
Relays : Four electromechanical SPDT (Form C) contacts, 1200 W, 5 A
Security Levels : 2 password-protected levels
Sensor Input #1: Digital
Sensor Input #2 : None
Storage Conditions : -20 °C to 70 °C
Warranty : 2 years
Weight : 1.70 kg
