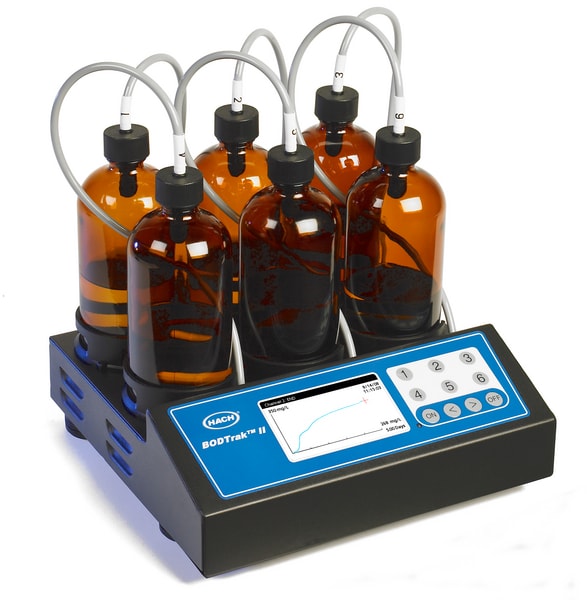

HACH, BODTrak II Respirometric BOD Apparatus

Prod #2952400

Simplify BOD analysis with the BODTrak™II Respirometric BOD Apparatus. Results comparable to the dilution method can be achieved in only two to three days. Use these results for process control or as a complement to the dilution method (not approved by USEPA for NPDES reporting purposes). The BODTrak II is a re-engineered version of the original Hach BODTrak. Improvements to the old system include greaseless bottle seals, a larger graphical display, improved stirring and temperature control, a smaller footprint, improved procedures with expanded options, an auto-switching power supply, and bottle fences to prevent tipping of bottles.

  • Decrease total test time
  • Faster than Dilution Method
  • BOD results that are easy to monitor
  • Standalone operation
  • DO probes and titrations are eliminated

Product Overview

Specification BODTrak II
BOD bottle 473 mL/6 pcs
Capacity Six 492 mL bottles
Dimensions Depth 10.3 in
Dimensions Height 9.8 cm (3.9 in.)
Dimensions Width (11.4 in.)
Drift < 3 mg/L BOD in 5 days
Footnote *The BODTrak II method is not approved by the USEPA for NPDES reporting purposes.
Input Voltage
110 - 240 V, 50/60 Hz
Instrumen BOD Trak II Apparatus
Interface RS232
Measurement Method Manometric
Output Voltage 24V, UL CSA, and TUV approved
Range 0 - 700 mg/L
Weight 4 Kg
