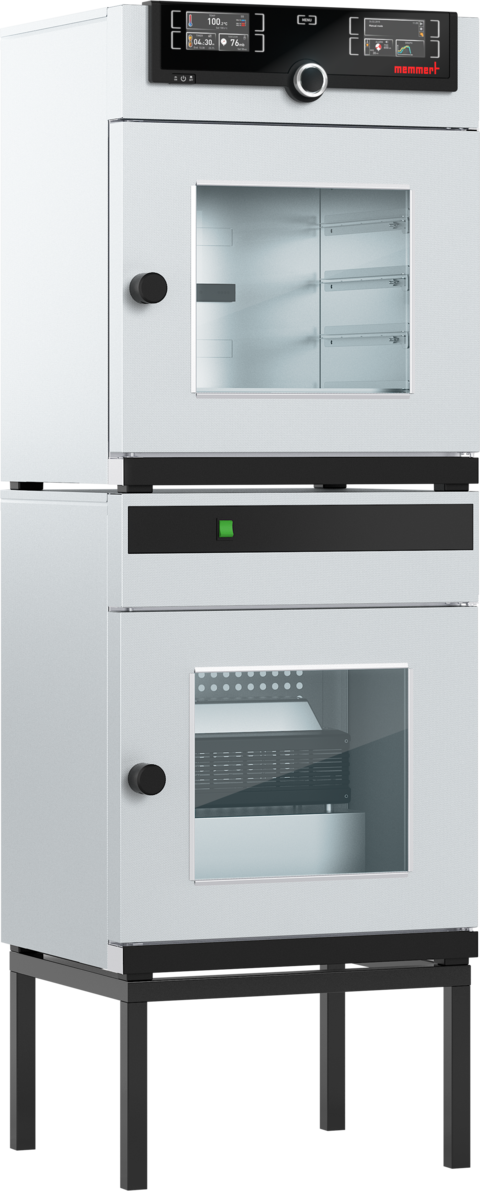

MEMMERT, VO29 Vacuum Oven 29 L
Prod #VO29
- Temperature range up to +200 °C
- Vacuum control range: 5 to 1100 mbar
- 3 model sizes (29 to 101 litres volume)
- 1 model variant: TwinDISPLAY
- Anti-splinter; VDE-tested door construction for all models
- Pump control: Optimised rinsing of the pump membrane as well as signal output for switching the pump ON/OFF according to requirements.
- Optional: Pump base cabinet and energy-efficient vacuum pump
Brosur klik disini
Product Overview
Spesifikasi Alat:
| Setting accuracy temperature | up to 99.9 °C: 0.1 / from 100 °C: 0.5 |
| Setting temperature range | +20 to +200 °C |
| Working temperature range | min. 5°C above ambient up to +200°C |
| Vacuum range | 5 to 1100 mbar |
| Pressure control | Digital electronic pressure control for a speed-controlled vacuum pump. Tubing for vacuum, air and inert gas are made of material 1.4571 (ASTM 316 Ti). Programmable, digitally controlled inlet for air. |
| Permitted final vacuum | 0.01 mbar |
| Maximum leakage rate | 0.01 bar/h |
| Volume | 29 l |

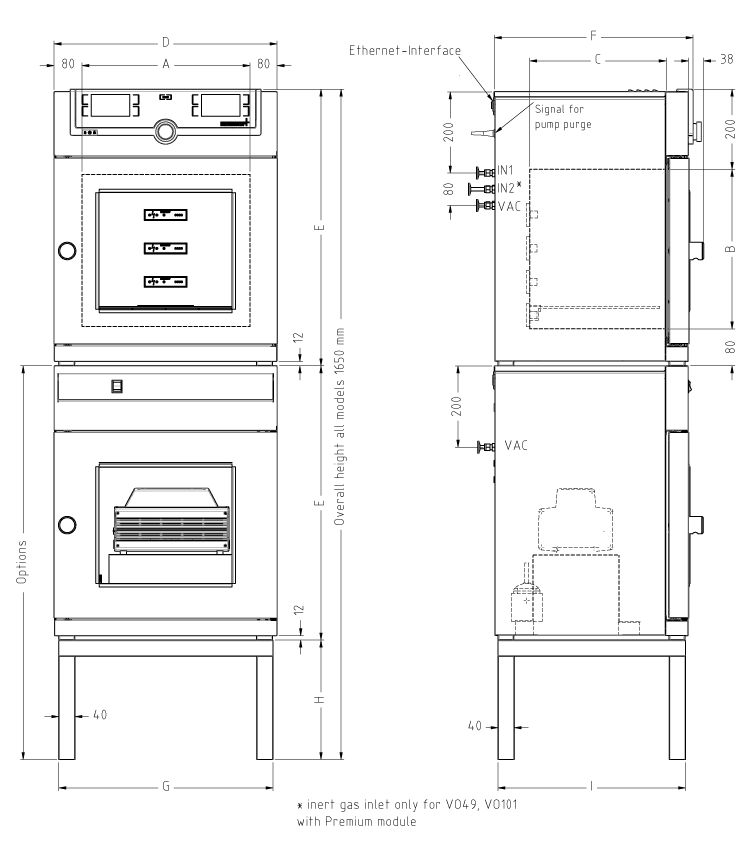

| Dimensions interior | w(A) x h(B) x d(C): 385 x 305 x 250 mm |
| Max. number of internals | 2 |
| Max. loading of chamber | 40 kg |
| Max. loading per internal | 20 kg |
