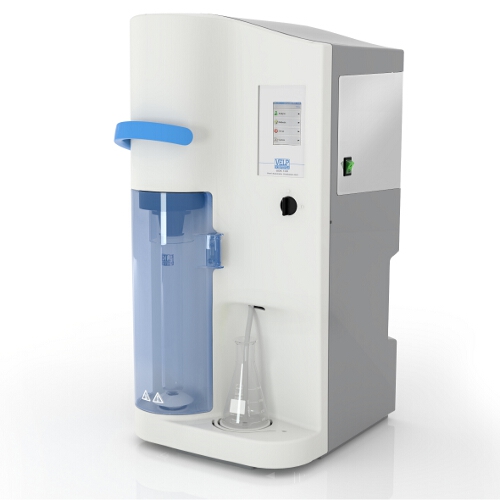

VELP, UDK 139 Semi-Automtic Kjeldahl Distillation Unit

Prod #F30200130

Unit Distilasi Kjeldahl semi otomatis dapat digunakan untuk analisis pada berbagai aplikasi seperti penentuan ammonia nitrogen, protein, kandungan nitrogen, nitrat nitrogen (setelah reduksi), fenol, asam volatil, sianida, dan kandungan alkohol.

Unit Distilasi Kjeldahl semi otomatis mampu bekerja secara efektif dan otomatis setelah mengatur waktu distilasi, penambahan NaOH dan air , serta pemanasan uap pada level 10 sampai dengan 100% menggunakan layar sentuh inovatif bewarna 3.5''.

Product Overview

GENERAL FEATURES
Structure: Corrosion-resistant technopolymer
Display: 3.5" color touch screen
Time related to start for Devarda alloy analysis: 0 – 99 min
Protocol library: 10 customizable methods
Reproducibility (RSD): ≤ 1 %
Recovery: ≥ 99.5 % at nitrogen levels between 1 and 200 mg N
Detection Limit: ≥ 0.1 mg N
Power: 2100 W
Weight: 26 kg / 57.3 lb
Dimensions (WxHxD): 385x780x416 mm (15.2x30.7x16.4 in)

PERFORMANCE
Distillation time: 4 minutes to collect 100 ml of distillate
Sodium hydroxide addition: automatic
Water addition: automatic
Sodium hydroxide volume: 0 - 150 ml
Water volume: 0 - 200 ml
Distillation time: settable
Distillation residues removal: automatic
Steam flow regulation: from 10 to 100 %
Tap water consumption: from 0,5 l/min at 15 °C – from 1 l/min at 30 °C
Connections: 2 x USB for printer, mouse

Automated Operation

  • Programmable water, sodium hydroxide addition and distillation time
  • Selectable steam generation output level 10% – 100%
  • Auto removal of residues from sample tube

High Tech

  • 3.5 inch color touch screen
  • Library of 10 customizable methods
  • Choice of 6 languages
  • Mouse & printer USB connections
  • No loss of nitrogen: distillate temperature stays below threshold
  • Accurate dosing of reagents with high precision pumps

Outstanding Reliability

  • Maintenance-free, resistant, patented steam generator
  • Patented titanium condenser for unmatched performance
  • Durable technopolymer splash head
  • Chemically-resistant technopolymer housing

Operator Safety

  • Lever operation simplifies tube insertion / removal (all sizes)
  • Protection screen for distillation chamber
  • Drip tray collects splashes
  • Zero pressure steam generator

Ecology & Standards

  • Performs to AOAC, EPA, DIN and ISO standards
  • Incorporates TEMS™ technology*
    Automated water supply control reduces consumption


    *Saving Time, Energy, Money & Space
